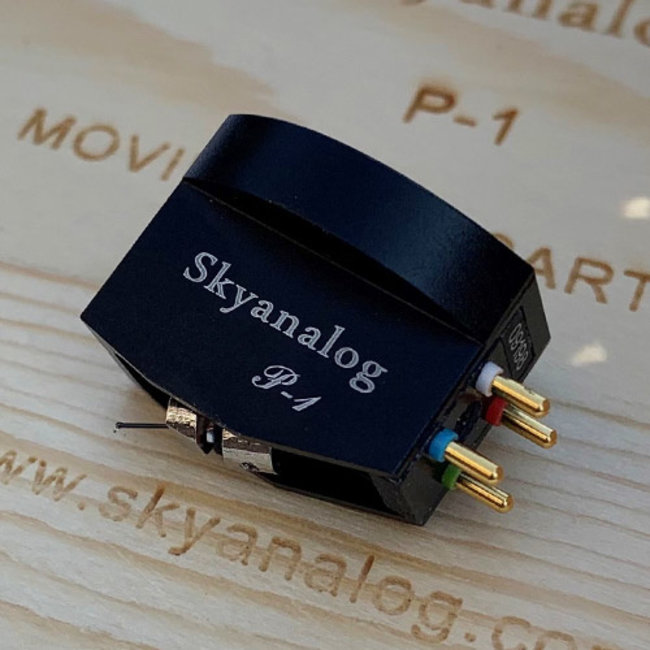

SkyAnalog P-1 MC
€499,00Incl. btw
Op voorraad
Moving coil element van SkyAnaloge. Lees meer..
Benieuwd naar dit product?
1 tot 2 werkdagen
Gratis verzending
voor orders boven €50,00 NL, BEwebshop 24/7 open
openingstijden winkel zie contactpersoonlijk advies
demo mogelijkAlle luidsprekerprijzen zijn per set
Productomschrijving
MODEL P-1 SPECIFICATIONS
| PHYSICAL | |
| Cantilever | Boron |
| Stylus | Diamond |
| Stylus Tip Radius | 5 x 150 µm |
| VTA Vertical Tracking Angle | 20˚ |
| Coil | Pure Iron Cross Coil |
| Weight | 8.9 grams |
| ELECTRICAL | |
| Output Voltage | 0.35 mV @ 3.54 cm/s |
| Internal Impedance | 6 Ω |
| Frequency Respons | 20 – 20.000 Hz +/- 1 dB |
| Channel Separation | ˃ 30 dB at 1 kHz |
| Channel Balance | < 0.5 dB |
| DYNAMIC | |
| Tracking Ability @ 315 Hz / 2 grams | 80 µm |
| Dynamic Compliance | 12 µm / mN |
| SETUP INSTRUCTION | |
| Recommended Load | 100 – 220 Ω |
| Recommended Tracking Force | 1.6 – 2.0 grams |
| Optimum Tracking Force | 1.8 grams |
| Recommended Tonearm Mass | Medium |
| Optimum Working Temperature | 23 ˚C |
| Break-In Period | 30 hours |
Reviews
0 beoordelingen
Specificaties
SkyAnalog P-1 MC
0 beoordelingenBeoordeel SkyAnalog SkyAnalog P-1 MC
Moving coil element van SkyAnaloge.
