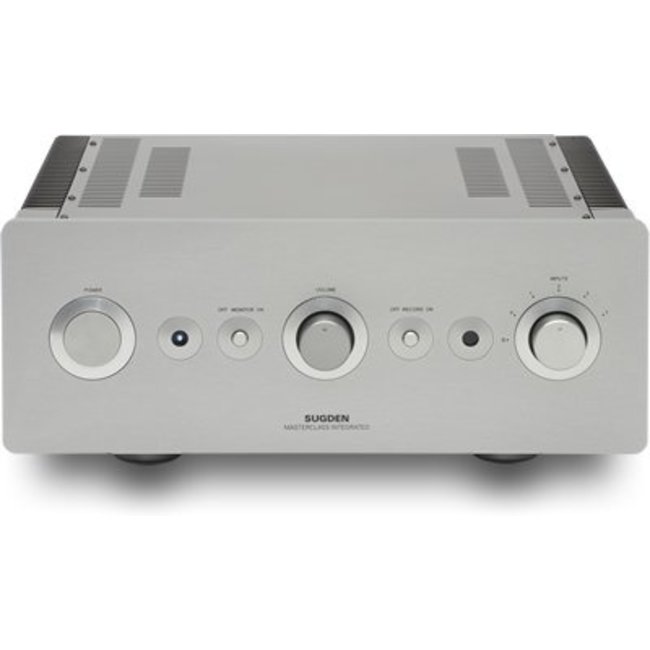

Sugden Masterclass IA-4

A large integrated, pure Class A, solid state power amplifier which can project and fill the an enormous holographic sound stage with music.

Omschrijving

A large integrated, pure Class A, solid state power amplifier which can project and fill the an enormous holographic sound stage with music. An extraordinary, organic, euphonic, acoustic performance from an integrated source. This ambitious concept of amplification combines a wide bandwidth state of the art preamplifier with an ultimate development of the original Sugden A21 pure Class A power stages.

Specificaties

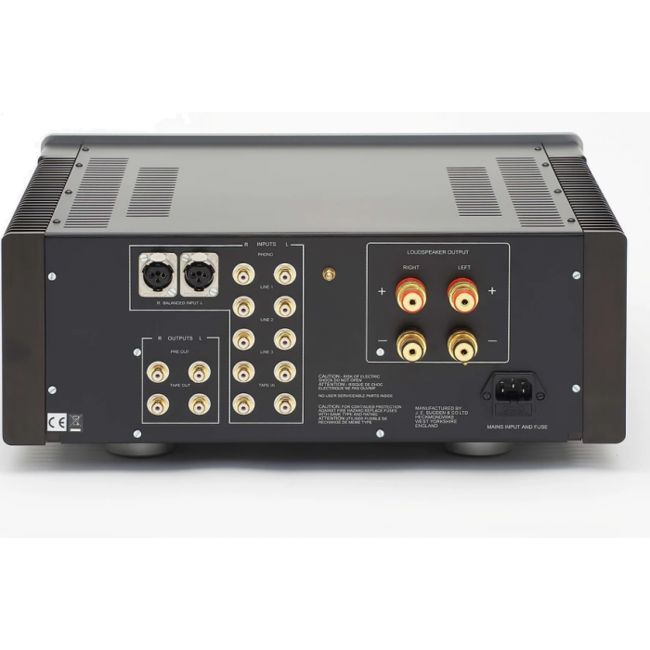

Ingangen: 3 x lijnniveau RCA, 1 tape, 1 MM phono,

1 x balanced XLR

Uitgang: 1 pre-out (variabel), 1 tape-out (fixed)

1 paar luidsprekeruitgangen

Ingang-gevoeligheid: 125 mV

MM phono-ingang: 2 mV

Vermogen: 2 x 33 W/8 ?

Signaal/ruis verhouding : -84 dB

Frequentie respons: +/- 1 dB 14 Hz- 200 kHz

Bandbreedte: +/- 3 dB 2Hz-200kHz

Gewicht: 20 kg

Afmetingen hxbxd: 165 x 430 x 440 mm
