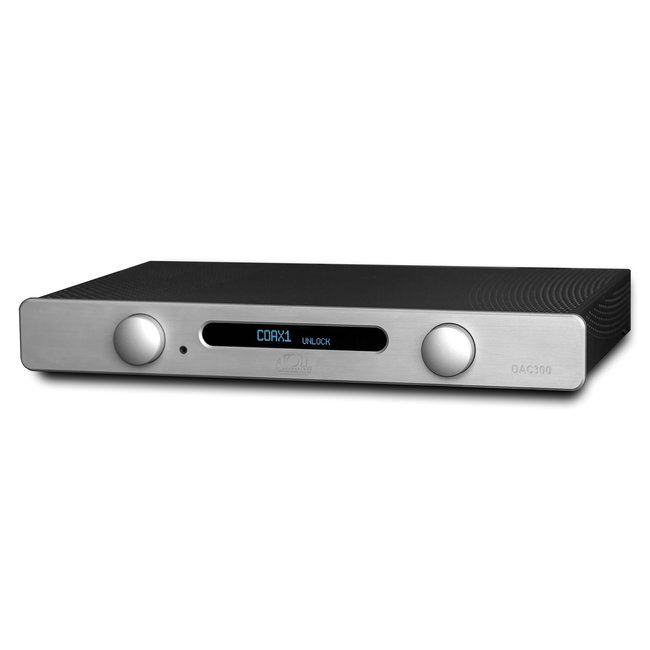

ATOLL DAC300

Audio specs:
– SABRE converter ES9038PRO (32 bits/768kHz)
(137dB dynamic range; THD+n -122dB)
– Ultra low jitter clock oscillator
– Symmetrical voltage outputs
– SABRE ES9311EQ Ultra-Low Noise supply (<1μVrms output noise)
– Symmetrical power transformers for output stages (low noise transformers)
– Output stages with discrete components and no-feedback
– High technology MKP capacitors

Readable files:

The SPDIF inputs may playback up to PCM 192kHz.

USB-B input plays up to PCM 768kHz & DSD64, 128, 256 and 512.

(These performances may vary depending on the software or OS of the USB source).

Frequency Response: 5 Hz – 20 kHz
THD at 1kHz (0dBF): -122dB
Signal/Noise ratio: 132 dB
Dynamic: 137 dB
Output level: Maximum line: 2,25 Vrms
Output Level: Maximum XLR: 2,25 Vrms
Dimensions: 440×308×63 mm
Weight: 5 Kg
