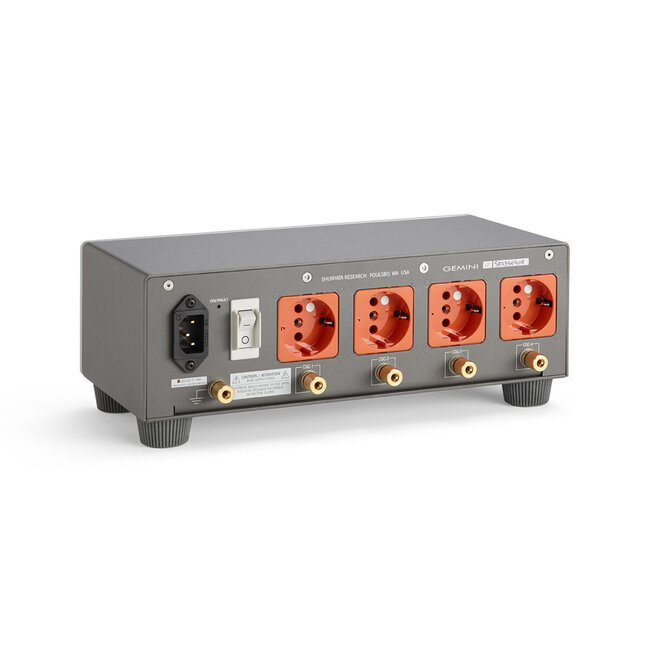

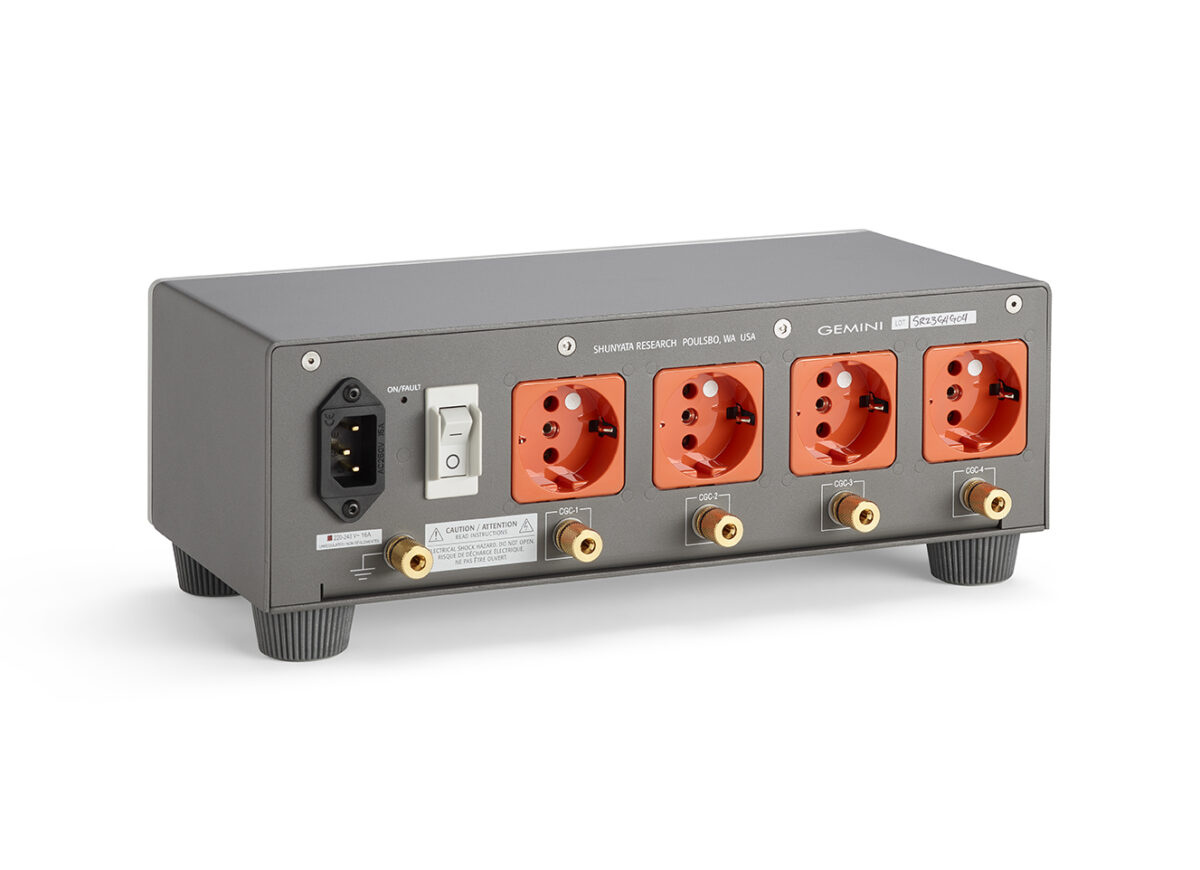

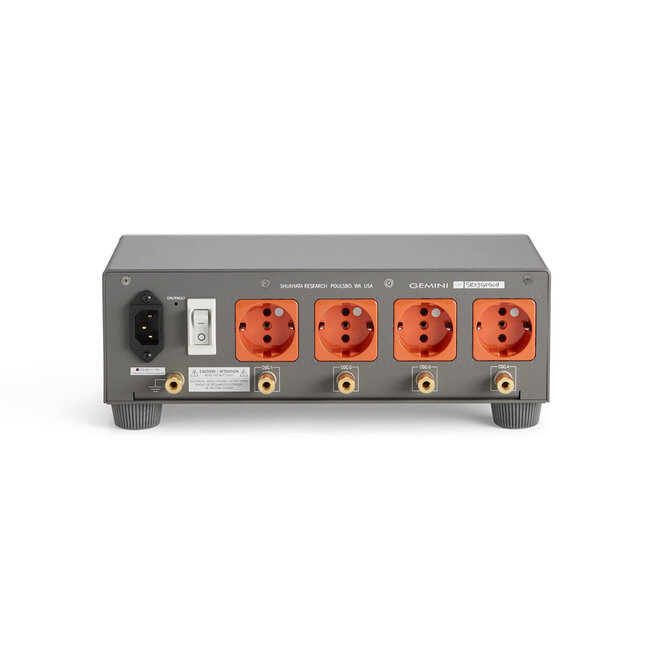

Shunyata Research GEMINI Model-4

Maximum Voltage:
90-125 VAC r.m.s. unregulated (US)
220-240 VAC r.m.s. unregulated (AS)
220-240 VAC r.m.s. unregulated (EU)

Input Current Ratings:
Maximum Continuous Current: 20A (US)
Maximum Continuous Current: 16A (AS)
Maximum Continuous Current: 16A (EU)

Output Current Ratings:
Max Current/Outlet: 15A (US & AS)
Max Current/Socket: 16A (EU)

Maximum Transient Protection:
40,000 A @ 8/50 μs

Over-Current Protection:
Hydraulic Electromagnetic Breaker

Wiring System:
Dual 12-gauge ArNi® VTX™ Buss System
Ratings: 600 V 105° C

Noise Suppression:
Input to Output (100 kHz – 30 MHz): > 24 dB reduction
Zone to Zone (100 kHz – 30 MHz): > 26 dB reduction

Connectors & Outlets:
Inlet: IEC C15
US Outlets: 4 NEMA5-20R
AS Outlets: 4 NEMA 5-20R

Isolation Zones:
2 zones

Vibration Control:
Vibration dampening panels (internal)
Shunyata Vibration Dampening Footers

Construction:
Aluminum and steel chassis
Anodized, aluminum faceplate

Dimensions:
Width: 12.25 inches (31.12 cm)
Depth: 5.88 inches (14.95 cm)
Height: 4.77 inches (12.12 cm)
Weight: 6.6 lbs. (2.0 kg)
