Silent Angel Bonn N-8 audiofile netwerk switch

Ik kon mijn oren niet geloven nadat wij in onze luisterruimte de switch hadden vervangen met de Silent Angel Bonn N8 bij zowel afspelen vanaf onze Naim Uniti Core NAS als Tidal was het verschil direct duidelijk een breder en dieper geluidsbeeld beter en strakkere laag weergave met meer dynamiek en detail.

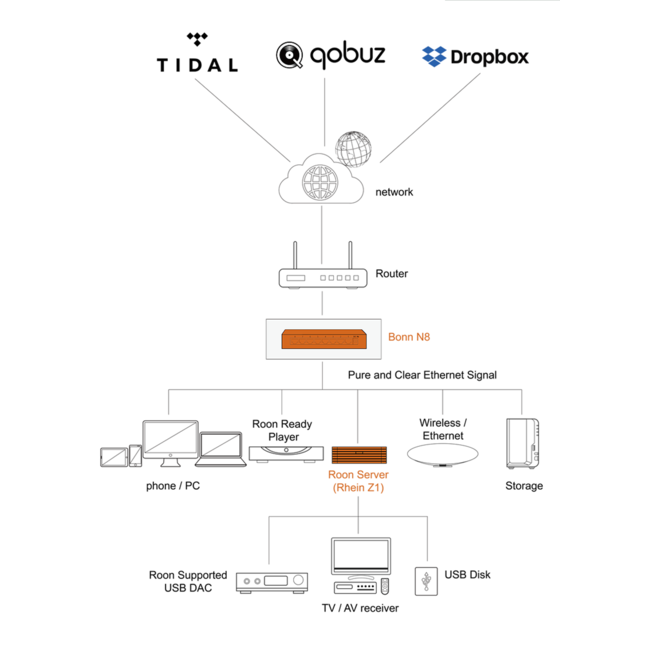

By improving power signal quality and network signal quality and TCXO technology, Bonn N8 improves the network signal quality. On Bonn N8, there are totally 8 high quality gigabit Ethernet ports, which make it possible to connecting to network ports on all audio devices at once. Through the network signal quality improvements from Bonn N8, it introduce significant improvement in music streaming playback through streaming service or NAS.

Features
Silent Angel Bonn N8 features low electrical noise and high anti-interference ability. Make it possible to get rid of data loss and generate high quality network signals.

Outlook
Vents at the left and right side to dissipate the heat.

Light indicators at front panel including power, alarm, link status and link speed of 8 ports. Make it convenient to know the status of network devices.

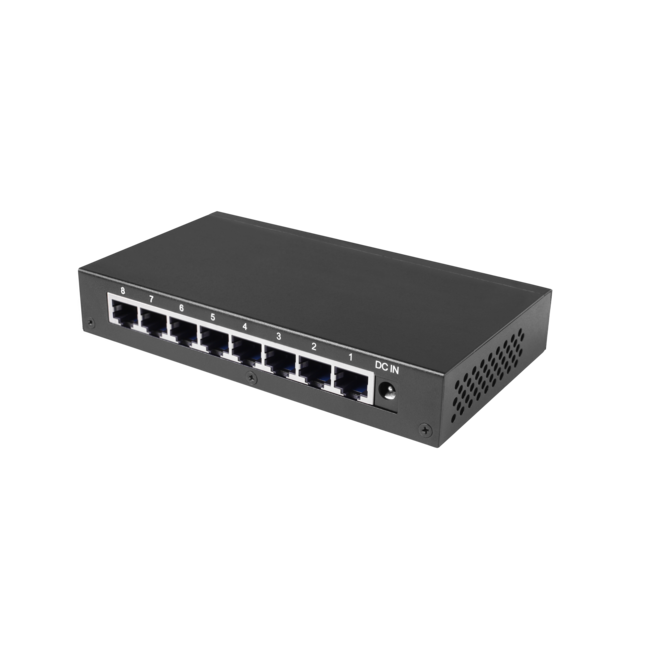

Eight audio grade 100/1000 Base-T gigabit Ethernet ports at rear panel, suitable for your network audio devices and all your home network appliances.

Equipped with exchangeable AC plug and medical grade power adaptor, which reduces the electrical noise from AC power and prevents from effecting the quality of network signals. High power efficiency, the power efficiency level is as high as VI and no load power consumption < 0.075W. Complete protection circuit design featuring short circuit, over load, over voltage protection.

Core Technologies

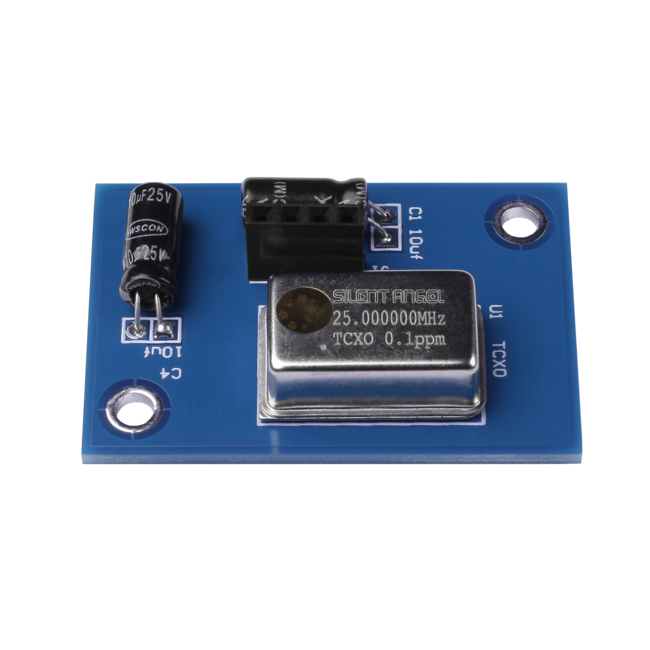

Silent Angel customized TCXO (Temperature Compensation crystal Oscillator) is highly accurate. The accuracy is 0.1ppm, which is much higher than normal crystal and higher than a normal TCXO. With this TCXO, Bonn N8 is able to generate more accurate network signal and provide more stable music data transmission

Two electrical noise isolation circuits, with noise rejection rate 17dB, for power circuit.

Two electrical noise isolation circuits, with noise rejection rate 20dB, for clock generation circuit.

These noise isolation circuit ensures Bonn N8 to work in stable state, and as a result, it generates stable network signals.

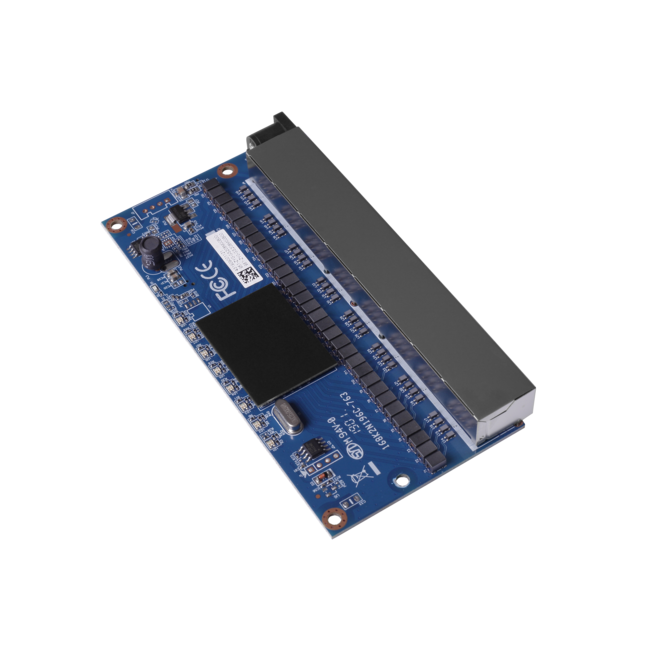

Furthermore, to reduce noise from digital circuits, Bonn N8 has special chosen EMI absorber at the inner side of bottom case to absorb the EMI (Electromagnetic Interference) from the inner digital circuit and make the network signal and clock circuit more stable and clear. make Bonn N8 works more stable and generate more clear network signals.

Comparing to general network switch, innovation and creative technologies is the core value of Bonn N8. The resulting improvements can be seen and proven on the signal measurements. Engineer in Thunder Data had found Bonn N8 network signal is much better than that of a general network switch.

The quality of network signal from Bonn N8 is 90% better than that of a general switch in jitter measurements
