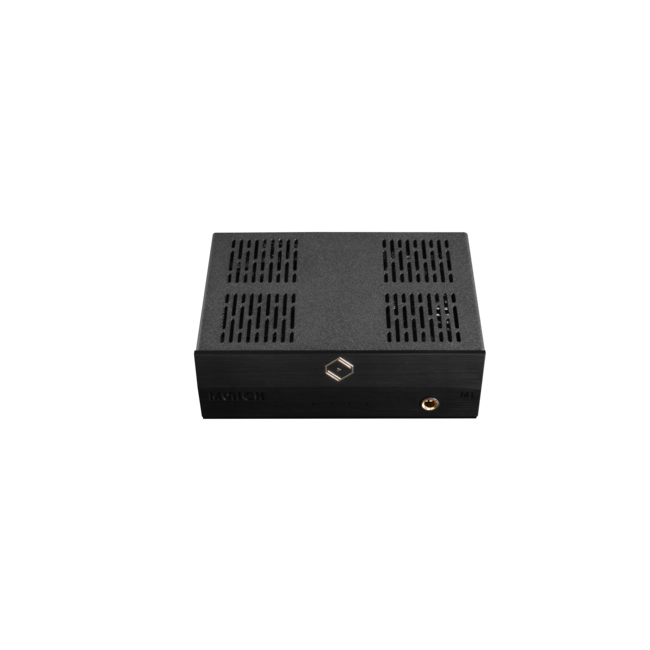

Silent Angel Munich Streamer M1

Power Consumption

10W at max

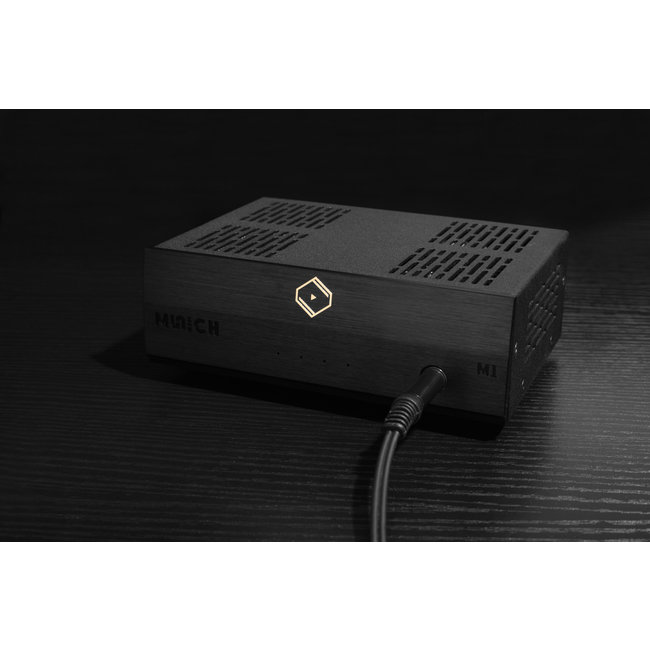

Headphone Jack

6.35 mm headphone jack x 1
33 Ohm

• 1mW, THD+N : 0.0035%
• MAX: 375mW THD+N: 0.002%

590 Ohm

• Max: 27.5mW, THD+N: 0.0015%

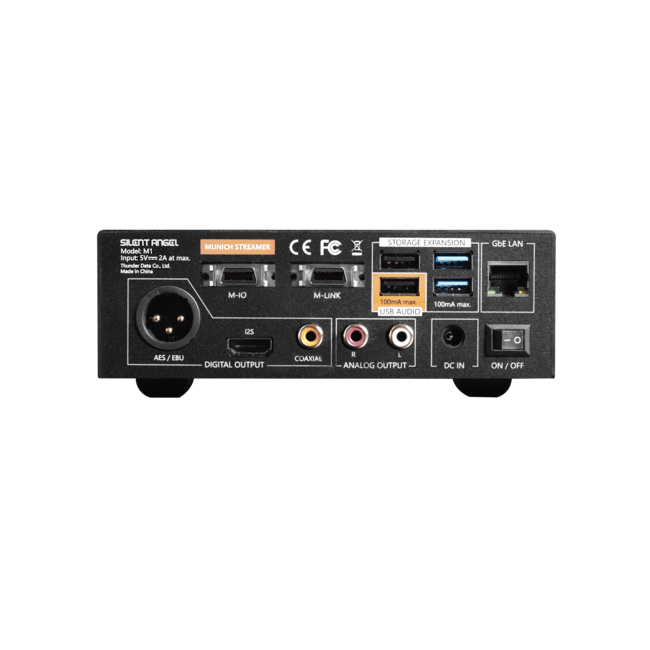

Digital Outputs

AES/EBU port x 1
I2S port x 1*
Coxial port x 1
- Supports up to PCM 384KHz and DSD 5.6M (DSD128)

* I2S output signal is not compatible with Holo Audio's DAC

USB Audio

USB Audio port x 1
- Supports up to PCM 768KHz and DSD 11.2M (DSD256)

Analog Output

RCA (L+R)
- 2Vrms THD+N : 0.00134 / 0.00164%
- Frequency response : 20Hz ~20KHz+- 0.5dB
- SNR : 108dB

USB

USB 3.0 x 2
USB 2.0 x 1
- Above USB ports are for external storage

M-IO

M-IO x 1*
*Reserved. To be enabled by future firmware upgrade

M-LINK

M-LINK x 1*
*Reserved. To be enabled by future firmware upgrade

Ethernet

1 GbE RJ45 x 1

Music Format

AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE

Gapless Playback

Supported

MQA Handling

The M1 will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port.

LED Indicator

Mute LED x 1
Power LED x 1
Digital Output LED x 2*
*Yellow light on when in DSD format / Green light on when in PCM format

Humidity

Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)

Dimensions

15(W) CM x 5 (H) CM x 11 (D) CM

Weight

1KG
